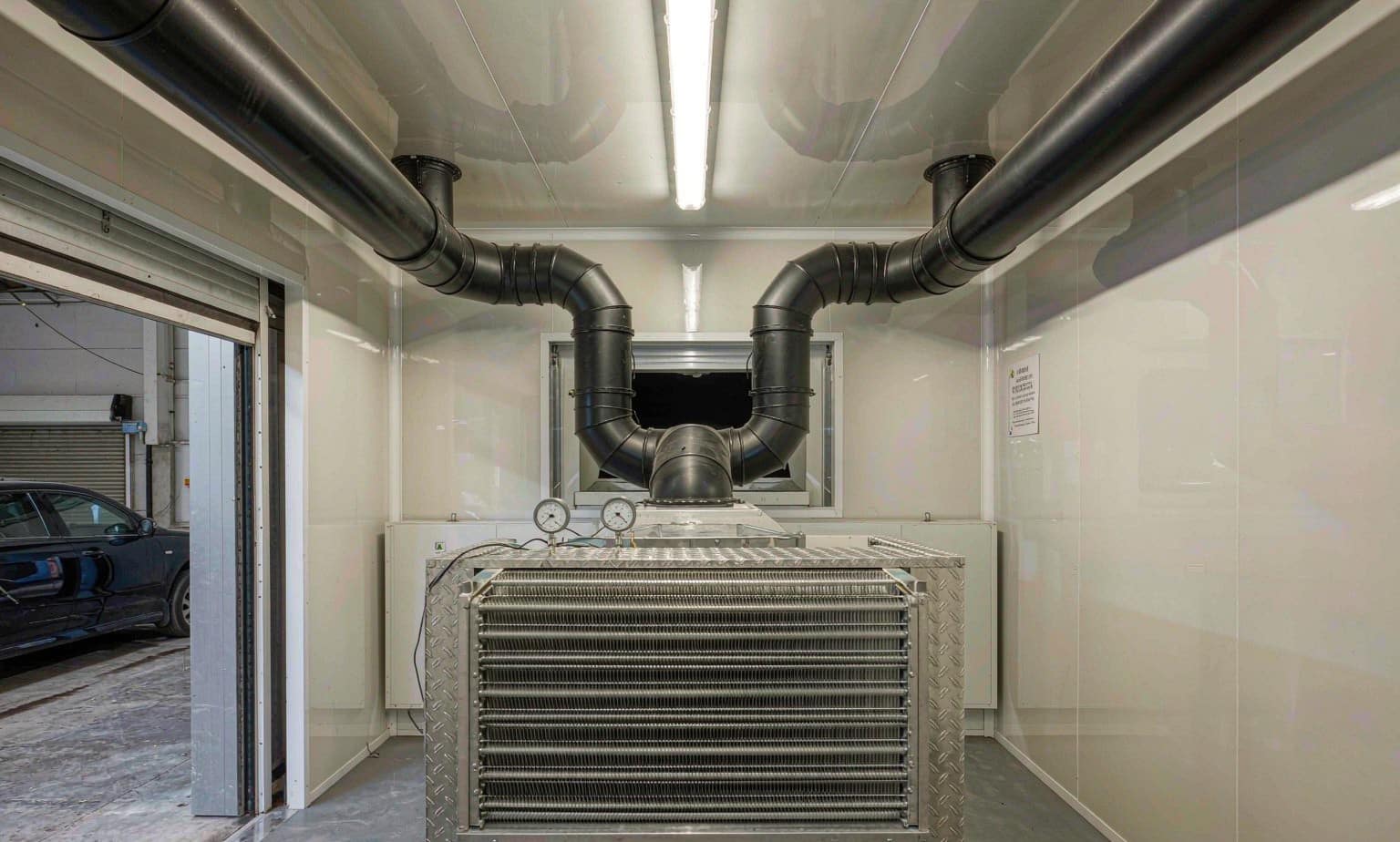

Warm exhaust from finishing booths
Spray-paint, powder-coat, and electrocoat booths exhaust large volumes of warm air carrying solvent or powder. Venting it wastes both heat and, in winter, forces the make-up air system to reheat from cold. Recovery preheats incoming air and reduces the heater load.
Suitable exchanger types and how they work
Stainless plate air-to-air exchangers preheat the make-up air using the booth exhaust, with the streams fully separated so no overspray or solvent crosses to the supply. A counterflow plate maximizes effectiveness; a run-around coil is used when booth and make-up units are distant.
Design considerations for paint booths
Exhaust can carry solvent vapor and particulate, so use cleanable stainless plates, provide condensate and drainage, and keep surface temperatures within safe limits for the solvents present. Design for frequent cleaning, confirm pressure drop against the booth exhaust fan, and never allow cross-leakage that could concentrate solvent on the supply side.
Typical Application Environments
Heat recovery is valuable wherever a building or process expels warm, stale air while drawing in cold or hot fresh air. Common sites include factory make-up air systems, commercial kitchens, paint booths, drying rooms, laboratories, and cleanrooms. In each case the exhausted air still holds usable thermal energy, and capturing it reduces the heating or cooling demand placed on the primary plant.
Matching the Unit to the Duty
The right selection starts with the air volume, the temperature difference between streams, and the cleanliness of the exhaust. Clean, steady flows suit plate exchangers; humid or dusty exhaust may need a rotary wheel with purge or a unit arranged for easy wash-down. Pressure drop must stay within the fan curve, and the core material must resist any contaminants present in the airstream.
Integration Tips
For the Heat Recovery for Paint and Coating Booth Exhaust duty, position the exchanger so the exhaust is filtered before it reaches the core, and provide condensate drainage where the supply side may drop below the dew point. Balanced supply and exhaust fans keep the building neutral in pressure, which protects indoor air quality and process control. A bypass damper lets the system free-cool in mild weather.
Frequently Asked Questions
Can it handle greasy kitchen air? Yes, with a rotary wheel and a wash cycle, though the exhaust should first pass a grease filter. Will it cause condensation? Some condensate is normal in winter; provide a drain or a defrost strategy on the supply side.
